Prepare Your Batteries
Officially launched at IBC, the CheckMate Battery Discharger is now available for preorder.
Prepare your batteries for transport
Preparing batteries for transport can be a repetitive and time-consuming part of equipment logistics.
Batteries may arrive at different charge levels, while manually monitoring their discharge takes valuable time and requires constant attention.
The CheckMate Battery Discharger provides a controlled and repeatable way to prepare compatible batteries for transport.
Choose your discharge current and target State of Charge, connect the battery and let it continuously monitor the process until the selected endpoint is reached.
How It works
Three simple steps from connection to information.

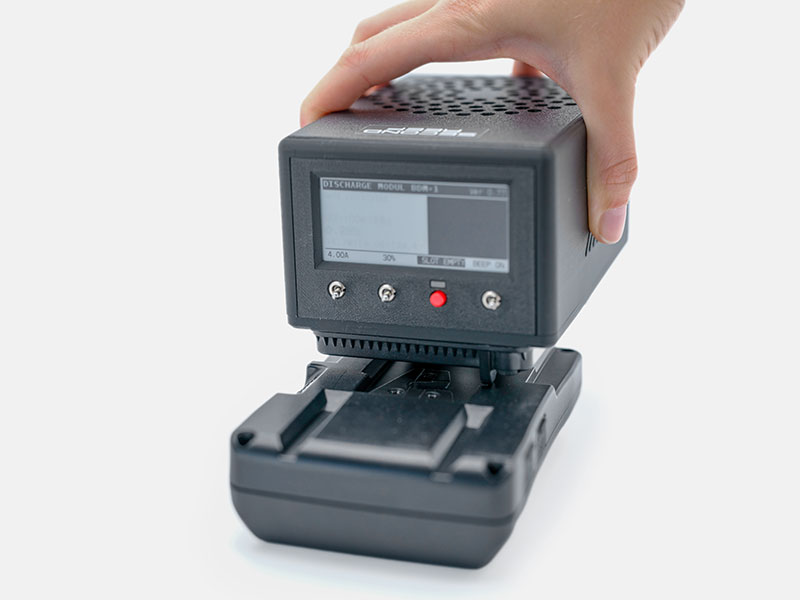

01 - Connect
Attach the compatible battery to the Battery Discharger and select the desired discharge current and target State of Charge.

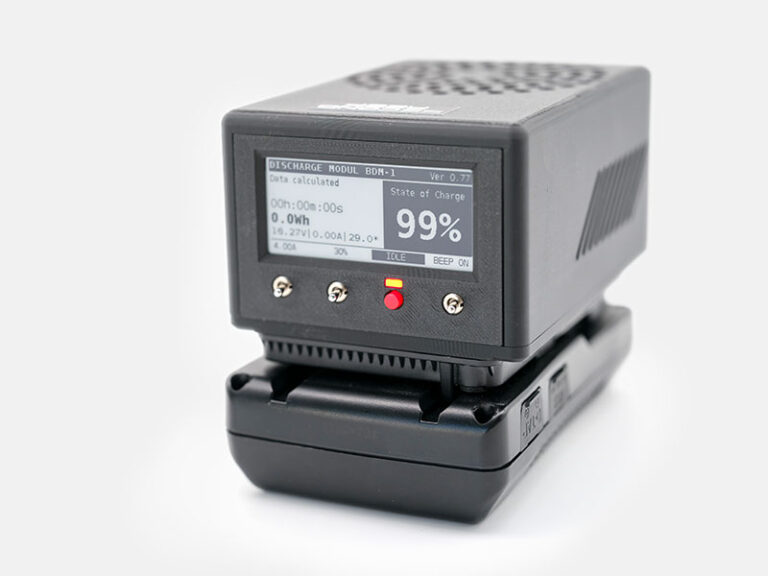

02 - Monitor
The device continuously displays the relevant discharge data, including voltage, current, elapsed time and discharged energy.
03 - Done
Once the selected State of Charge is reached, the discharge process stops automatically. The Discharger automatically switches to sleep mode to prevent the battery from being discharged further.
Features
With adjustable discharge parameters, continuous monitoring and automatic shutdown, the CheckMate Battery Discharger provides a controlled workflow for preparing batteries for transport.
Adjustable Discharge Current
14.4 V batteries: 2 / 3 / 4 A
28.8 V batteries: 1 / 1.5 / 2 A
Adjustable End Point
Choose the desired discharge endpoint: 10% / 20% / 30%
Once the selected endpoint is reached, it automatically stops discharging.
Continuous Monitoring
Monitor voltage, current, discharge duration, discharged energy and State of Charge throughout the process.
Temperature Monitoring
A cooling fan and over-temperature monitoring help keep the discharge process under control.
Multiple Battery Systems
The CheckMate Battery Discharger is available with different battery plates – V-Mount, B-Mount 12V and B-Mount 24V – to support a range of professional battery systems. Choose the configuration that matches your equipment inventory.
Need a specific battery system? Contact us to discuss your requirements.
