The CheckMate Cable Tester is a professional modular cable tester designed to quickly identify wiring faults, connection problems and insulation issues in professional cinema, broadcast and rental environments.
A faulty cable can bring an otherwise perfectly prepared setup to a standstill. Traditional continuity testers often tell you whether a connection exists – but not necessarily why something is wrong.
The CheckMate Cable Tester provides a detailed view of the cable’s wiring and electrical characteristics, allowing technicians to identify faults quickly and confidently. From broken connections and incorrect wiring to short circuits, high resistance and insulation problems, CheckMate helps you find the fault before the cable reaches set.
Three simple steps from connection to diagnosis.

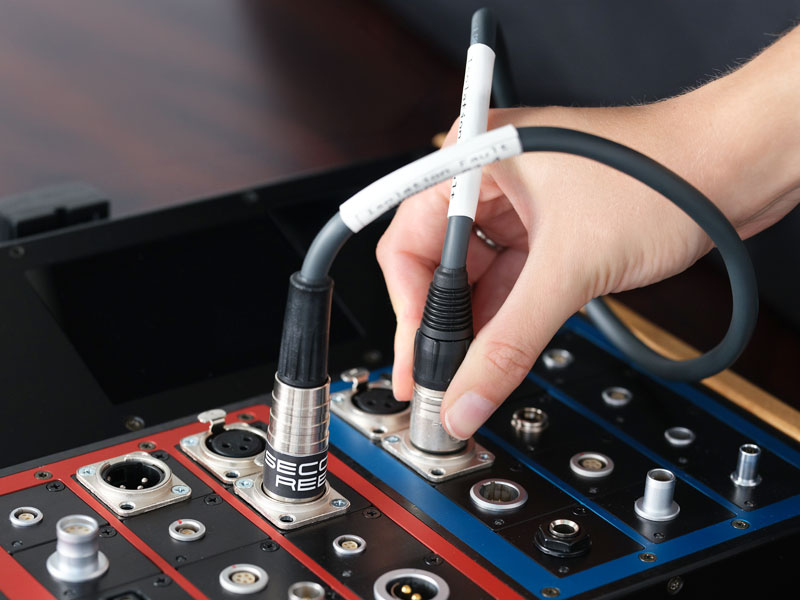

Insert both ends of the cable into the appropriate connector modules.

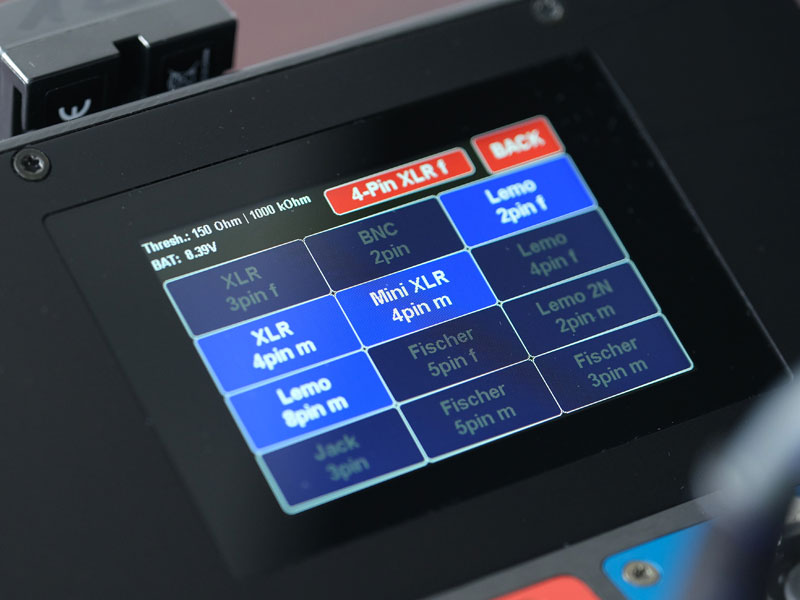

Select the connector pair using the touchscreen interface.
The Cable Tester analyzes the connection and displays the complete wiring graphically.
The CheckMate Cable Tester combines advanced electrical measurements with a simple touchscreen interface and a modular connector system. Choose the connectors you need, connect your cable and let CheckMate do the testing. The tester automatically recognizes installed connector modules and guides you through the testing process, while the high-brightness IPS display provides a clear graphical representation of every connection.
Choose only the connector modules you need today and expand your system whenever your workflow changes.
Identify wiring mistakes, broken conductors and intermittent faults in seconds.
Measure connection resistance and insulation resistance - not just continuity.
Firmware updates continuously add new connector types, wiring schemes and improvements.
Every production environment is different.
Instead of purchasing a fixed cable tester with predefined connectors, CheckMate allows you to configure the system according to your own equipment inventory.
Every frame comes with four connector modules of your choice, a USB-C power cable and a quick start guide.
Additional connector modules are available separately and can be added at any time.

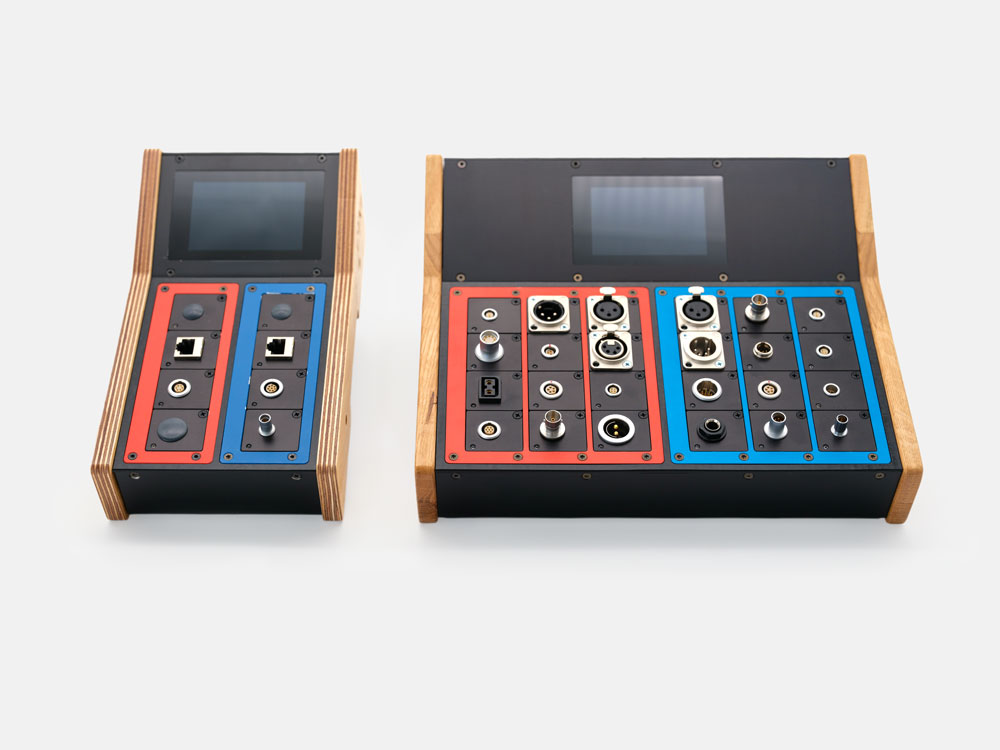

There are two available frame sizes.
Capacity for up to four connector modules per side.
Capacity for up to 12 connector modules per side.
Choose from a growing range of professional connector modules:
2 pol male
3 pol female/male
5 pol female/male
8 pol female (PSU network)
XLR 3 pol female
XLR 3 pol male
XLR 4 pol female
XLR 4 pol male
BNC
2 pol female (12V)/male
4 pol female/male
6 pol female/male (for RED)
8 pol female/male (ARRI)
Rean Mini XLR 4pol male
Würth RJ 45 LAN
D-Tap
6,3mm stereo jack
6,3mm mono jack
Officially launched at IBC, the CheckMate Cable Tester is now available for preorder.
From a single cable to an entire rental inventory, CheckMate gives you the tools to test faster, diagnose problems and keep equipment moving.
Build the configuration that works for you.
